Beijing Automobile Spare Part Co.,Ltd.
High quality, Best service,Reasonable price.
Place of Origin: | CHINA |
Brand Name: | ZW-HOVVO |
Certification: | CCC, ISO, B&V |
Model Number: | DSZW12365487 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 16000-18900 |
Packaging Details: | Nude |
Delivery Time: | 6 working days |
Payment Terms: | L/C, T/T |
Axle Number: | 3 | Engine: | Diesel |
---|---|---|---|
Axle Brand: | BPW | Discharge Valve: | 4 Disc Valve |
Loading Cpacity: | 50cbm | Tyre: | 12R22.5 |
Suspension: | Air | ||
High Light: | fuel tank semi trailer,tri - axle tanker trailer |

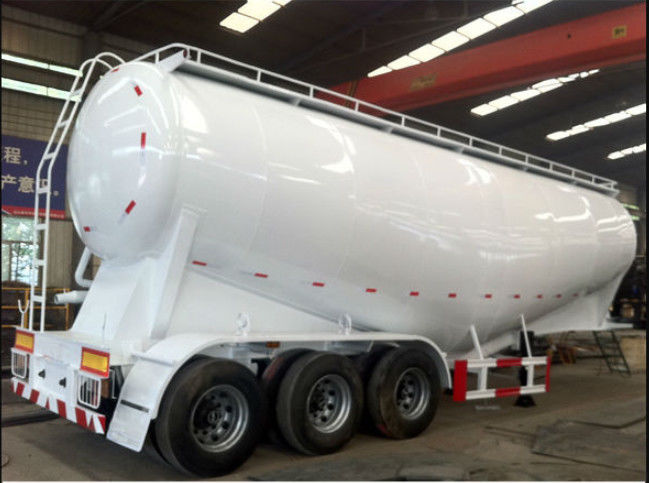

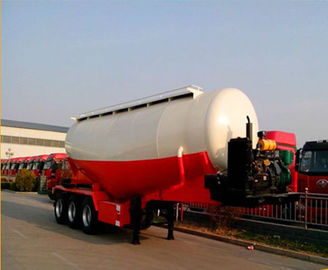

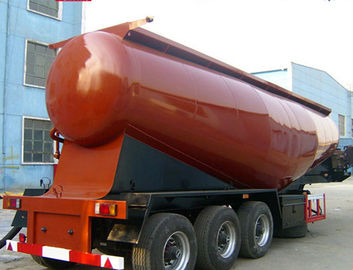

3 axle powder bulk cement trailer for transporting bpw brand air suspension
Application
This series tank semi trailers are mainly used in heavy duty transportation for
construction or logistic companies, such as fuel oil or liquid transporting
The volume varies widely from 20cube meters to75cube meters, we can
manufacture it according to your needs.
The axles can be Fuwa / Bpw with different tonnages by your need with price
differences.
The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie
suspension, etc
The loading deck can be concave beams, tire appeared cover, totally flatbed, or
extendable.
The loading ramps can be rear end designed, or front loading ladders, which can
be mechanic spring ladders and hydraulic loading ramps by different needs
Feature
Bulk cement tanker, bulk cement truck cement tanker. Used to transport bulk
cement.
Mainly for the use of cement plant, cement warehouses and large construction
sites, can save a lot of packaging materials and loading and unloading work.
According to the different requirements of customers design separately,
or tell us what goods medium is, we will give you the corresponding design models
and meet the personalized needs of customers
The tank car fittings valves, discharge port and the tank carries a variety of choice,
can be used to choose and buy according to the customer, for example: square or
circular, etc
Parameter
GENERAL |
|||||||
Overall Dimension |
12,850mm*2,495mm*3,960mm(L*W*H) |
||||||
King Pin Setting |
1,300mm |
Dead Weight |
14,350kg |
||||
RUNNING GEAR |
|||||||
Suspension |
Under mount tri-axle suspension with equalizer, 11-leaf spring |
||||||
Hub |
Cast steel 10 studs, oil seals |
||||||
Rim & Tire |
Rim: steel disc, 8.0-20 or 8.5-20 Tire: 11.00-20 or 12.00-20 12units |
||||||
Axles |
3STEYR,AQ,FUWA axle, 13 tons load capacity |
||||||
Brakes |
Dual lines pneumatic brake system; 30/30+30chambers, air-actuated |
||||||
King pin |
Welded kingpin, size 50# (2'') or 90#(3.5’’) |
||||||
Landing Gear |
Both sides manual operation type with sand shoe |
||||||
TANK |
|||||||
Tank Volume |
42cbm |
||||||
Tank Material |
Steel material Q235, Thickness 5mm |
||||||
Manhole Cover |
500mm manhole cover, 3 sets |
||||||
Compartment |
Single |
||||||
Inner Fluidized Bed |
Air bag |
||||||
KEY ACCESSORIES |
|||||||
Air compressor |
0.2Mpa, 12cbm/Min |
||||||
Engine |
Diesel engine 4102.44 37KW, |
||||||
Air-charging system |
2” main hole, 2”check valve, 1.5” safe valve, 0.4Mpa gauge |
||||||
Discharge Pipe |
4” seamless steel tube |
||||||
Outlet discharging pipe |
4” rubber hose, 6m |
||||||
ELECTRICAL & PAINT |
|||||||
Wiring |
24V, 6 lines |
||||||
Air/Elec. Connector |
ISO standard air connector |
||||||
24V 7 pin plug socket |
|||||||
Color |
Upon request |
Advantage
All of our products through the CCC and ISO certification, product quality is
absolutely guaranteed!
Our company has a professional production and design team, We design the
product that won the Chinese national patent approval.
We are manufacturers, not trading company.So we will let you get a lower price.
Shipping
Bulk Cargo and ROR
